Working Mechanism

Single server mode

Like other network proxy tools, you need a server configured with V2Ray, and then install and configure the V2Ray client on your device, and then you can smoothly access the Internet.

open in new window

A V2Ray server can simultaneously support multiple devices to access using different proxy protocols. At the same time, after reasonable configuration, V2Ray can identify and distinguish between the traffic that needs a proxy and the traffic that does not require a proxy. Directly connected traffic does not require detours.

Bridge mode

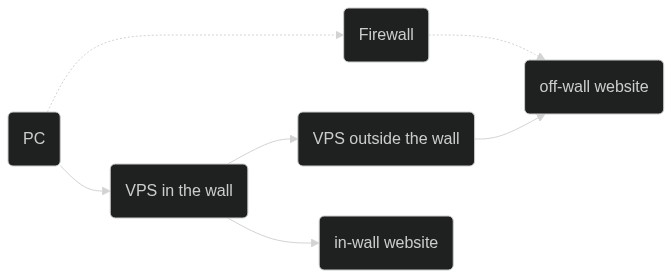

If you don't want to configure routing on every device, you can also set up a transit server to receive all the traffic sent by the client, and then forward the judgment in the server.

open in new window

working principle

Before configuring V2Ray, let’s take a look at the working principle of V2Ray. The following is a schematic diagram of the internal structure of a single V2Ray process. Multiple V2Rays are independent of each other and do not affect each other.

open in new window

  • You need to configure at least one inbound protocol (Inbound) and one outbound protocol (Outbound) to work properly.
    • The inbound protocol is responsible for communicating with the client (such as a browser):
      • Inbound protocols can usually configure user authentication, such as ID and password;
      • After the inbound protocol receives the data, it will be handed over to the Dispatcher for distribution;
    • The outbound protocol is responsible for sending data to the server, such as V2Ray on another host.
  • When there are multiple outbound protocols, routing can be configured to specify that a certain type of traffic is sent by a certain outbound protocol.
    • When necessary, the router will query the DNS for more information to make a judgment.

The specific configuration format is detailed in Chapter 2.
